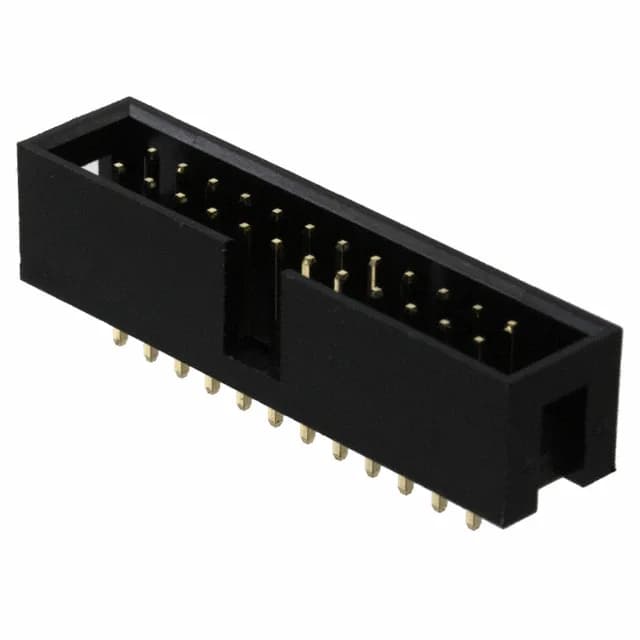

On Shore Technology Inc. 302-S241
MPN302-S241
Active
CONN HEADER VERT 24POS 2.54MM
$0.6100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series302
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 302 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.358\" (9.10mm) |
| Insulation material | Polyester, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 1.25µin (0.032µm) |
| Contact finish thickness - mating | Flash |
