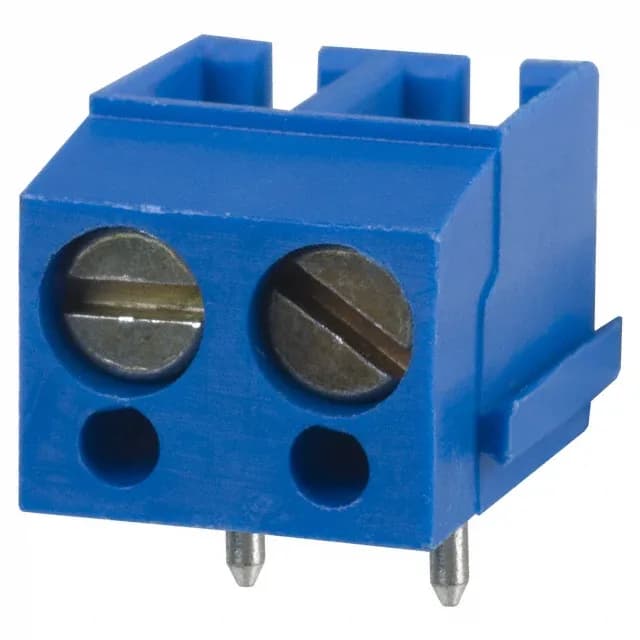

On Shore Technology Inc. ED125/2DS
MPNED125/2DS
Active
TERM BLK 2POS TOP ENT 5.08MM PCB
$1.1800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesED125/DS
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ED125/DS |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 15 A |
| Wire gauge | 14-22 AWG |
| Wire termination | Screw - Leaf Spring, Wire Guard |
| Operating temperature | -30°C ~ 105°C |
| Color | Blue |
| Housing material | Polyamide (PA), Nylon |
| Clamp material - plating | Steel, Stainless |
| Contact material - plating | Brass |
| Pitch | 0.200\" (5.08mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw thread | M3 |
| Torque - screw | 0.5 Nm (4.4 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Vertical with Board |
| Positions per level | 2 |
