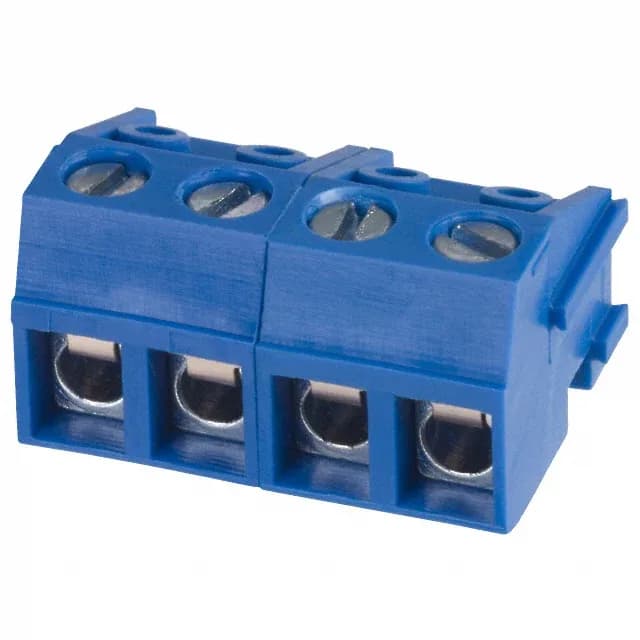

On Shore Technology Inc. ED130/4DS
MPNED130/4DS
Active
TERM BLOCK PLUG 4POS 90DEG 5MM
$2.3900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesED130
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug for Unshrouded Header |
| Series | ED130 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Plug wire entry | 90° |
| Wire strip length | 6mm |
| Wire gauge or range - AWG | 14-22 AWG |
| Wire gauge or range - mm2 | 1.5mm² |
| Operating temperature | -30°C ~ 105°C |
| Color | Blue |
| Contact material | Copper Beryllium |
All specifications
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.425\" (10.80mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw size | M2.6 |
| Torque - screw | 0.4 Nm (3.5 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw |
| Positions | 4 |
| Positions per level | 4 |
