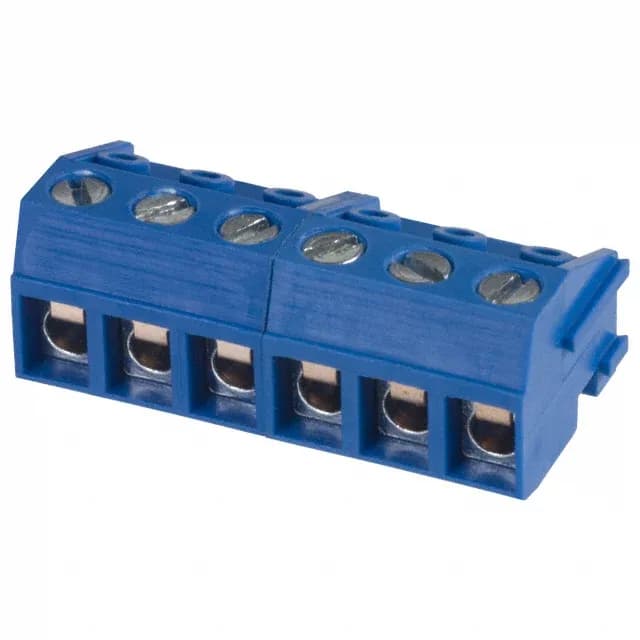

On Shore Technology Inc. ED130/6DS
MPNED130/6DS
Active
TERM BLOCK PLUG 6POS 90DEG 5MM
$3.1900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesED130
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug for Unshrouded Header |
| Series | ED130 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Plug wire entry | 90° |
| Wire strip length | 6mm |
| Wire gauge or range - AWG | 14-22 AWG |
| Wire gauge or range - mm2 | 1.5mm² |
| Operating temperature | -30°C ~ 105°C |
| Color | Blue |
| Contact material | Copper Beryllium |
All specifications
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.425\" (10.80mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw size | M2.6 |
| Torque - screw | 0.4 Nm (3.5 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw |
| Positions | 6 |
| Positions per level | 6 |
