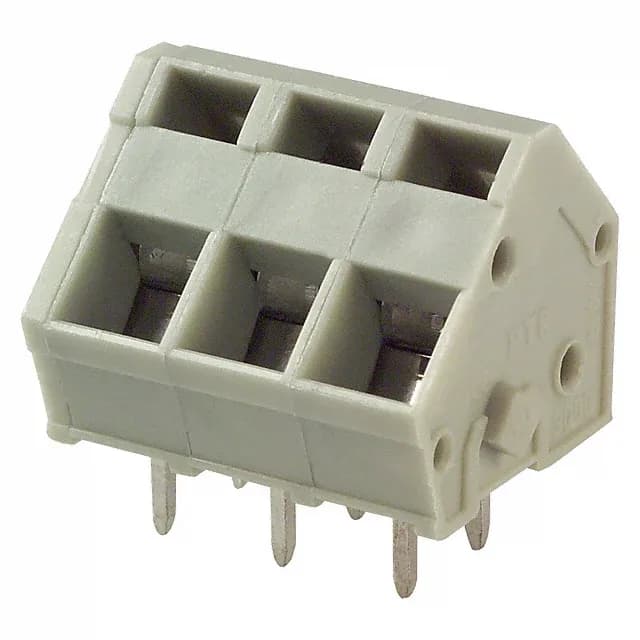

On Shore Technology Inc. ED3000/3
MPNED3000/3
Active
TERM BLOCK 3POS 45DEG 5MM PCB
$1.7300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesED3000
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ED3000 |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 16 A |
| Wire gauge | 14-28 AWG |
| Wire termination | Screwless - Leg Spring, Push-In Spring |
| Operating temperature | -30°C ~ 105°C |
| Color | Gray, Slate |
| Housing material | Polyamide (PA), Nylon |
| Clamp material - plating | Copper |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Number of levels | 1 |
| Mating orientation | 45° (135°) Angle with Board |
| Positions per level | 3 |
