On Shore Technology Inc. ED4101/5-KD
MPNED4101/5-KD
Active

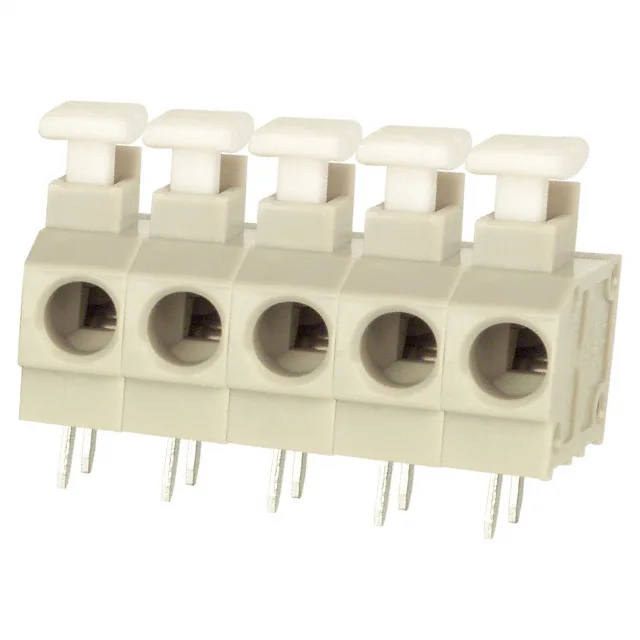

TERM BLK 5POS SIDE ENTRY 5MM PCB
$3.11Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesED4101
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ED4101 |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 10 A |
| Wire gauge | 14-20 AWG |
| Wire termination | Screwless - Push Button Clamp |
| Operating temperature | -30°C ~ 105°C |
| Color | Gray, Slate |
| Housing material | Polyamide (PA), Nylon |
| Clamp material - plating | Steel, Stainless |
| Contact material - plating | Copper |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 5 |
