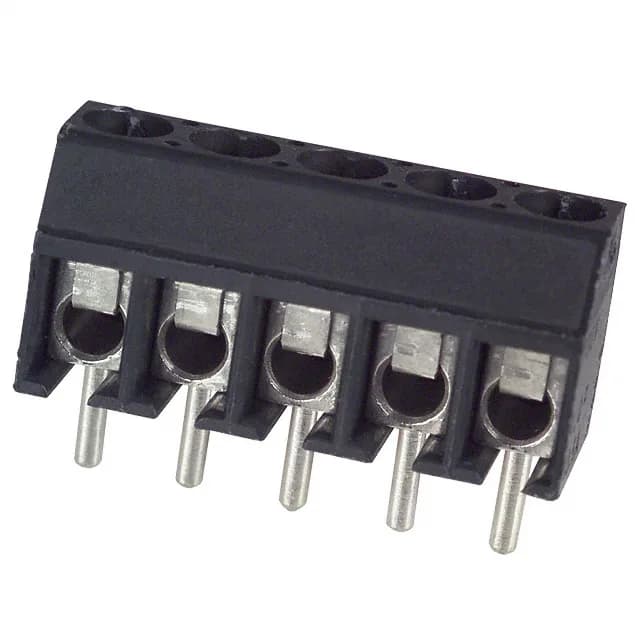

On Shore Technology Inc. ED555/5DS
MPNED555/5DS
Active
TERM BLK 5POS SIDE ENT 3.5MM PCB
$1.9300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesED555/DS
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ED555/DS |
| Mounting | Through Hole |
| Voltage | 150 V |
| Current | 6 A |
| Wire gauge | 16-28 AWG |
| Wire termination | Screw - Leaf Spring, Wire Guard |
| Operating temperature | -40°C ~ 105°C |
| Color | Gray |
| Housing material | Polyamide (PA), Nylon |
| Clamp material - plating | Steel, Stainless |
| Contact material - plating | Brass |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Screw thread | M2 |
| Torque - screw | 0.4 Nm (3.5 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 5 |
