On Shore Technology Inc. ED655/2DS
MPNED655/2DS
Active

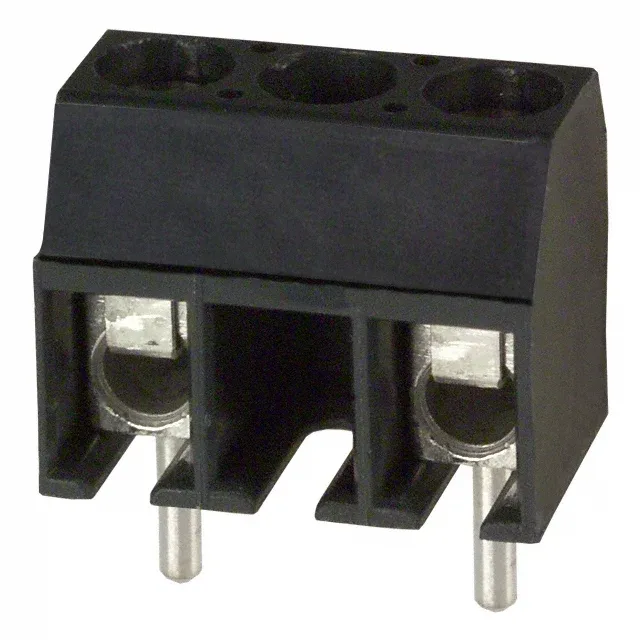

TERM BLK 2POS SIDE ENTRY 7MM PCB
$0.99Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesED655/DS
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ED655/DS |
| Mounting | Through Hole |
| Voltage | 250 V |
| Current | 6 A |
| Wire gauge | 16-28 AWG |
| Wire termination | Screw |
| Operating temperature | -30°C ~ 105°C |
| Color | Gray |
| Housing material | Polyamide (PA), Nylon |
| Clamp material - plating | Copper Tin Alloy |
| Contact material - plating | Brass |
| Pitch | 0.276\" (7.00mm) |
| Package | Bulk |
| Screw thread | M2 |
| Torque - screw | 0.4 Nm (3.5 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 2 |
