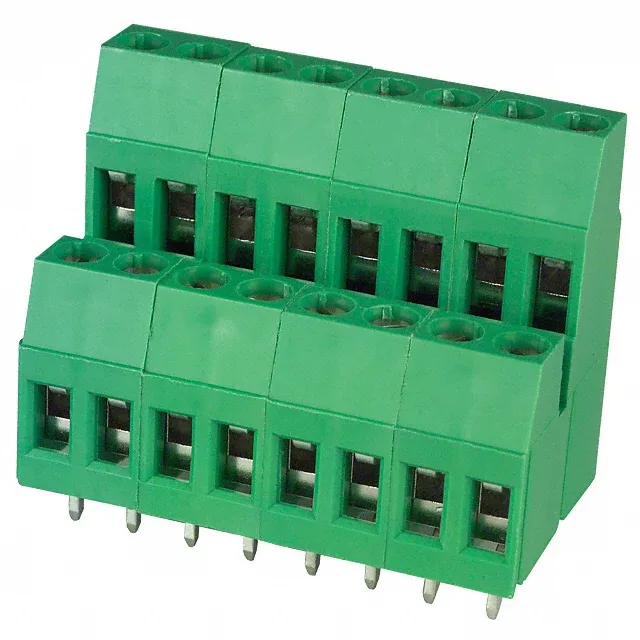

On Shore Technology Inc. ED790/8

On Shore Technology Inc. ED790/8

MPN ED790/8
Active

TERM BLK 8POS SIDE ENTRY 5MM PCB

$10.89 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesED790
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

ED790/8 specifications
ParameterValue
SeriesED790
MountingThrough Hole
Voltage300 V
Current20 A
Wire gauge12-30 AWG
Wire terminationScrew - Rising Cage Clamp
Operating temperature-30°C ~ 105°C
ColorGreen
Housing materialPolyamide (PA), Nylon
Clamp material - platingCopper
Contact material - platingBrass
Pitch0.197\" (5.00mm)
PackageBulk
Screw threadM3
Torque - screw0.5 Nm (4.4 Lb-In)
Number of levels2
Mating orientationHorizontal with Board
Positions per level8
