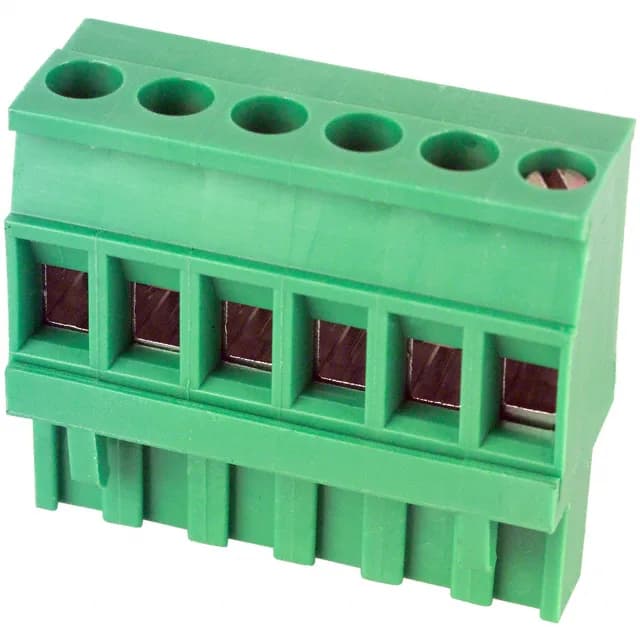

On Shore Technology Inc. EDZ1100/6
MPNEDZ1100/6
Active
TERM BLOCK PLUG 6POS 5.08MM
$6.6000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEDZ1100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | EDZ1100 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Wire strip length | 7mm |
| Wire gauge or range - AWG | 10-22 AWG |
| Wire gauge or range - mm2 | 2.5mm² |
| Operating temperature | -30°C ~ 105°C |
| Color | Green |
| Contact material | Copper Tin Alloy |
| Housing material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Torque - screw | 0.5 Nm (4.4 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw |
| Positions | 6 |
| Positions per level | 6 |
