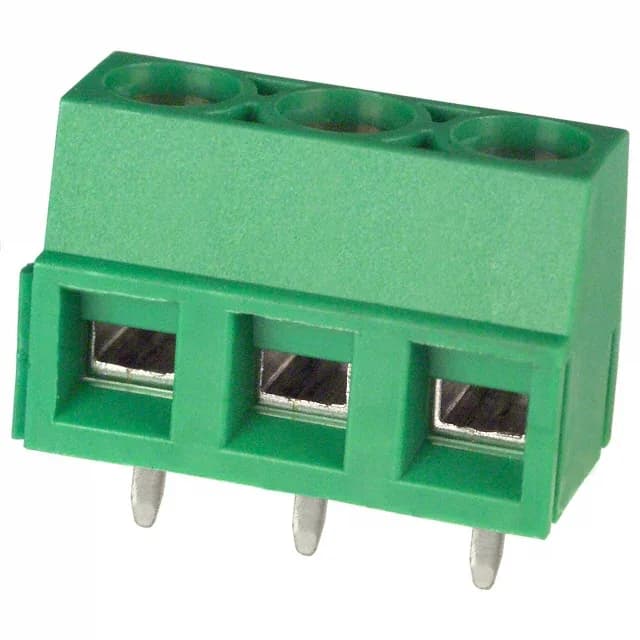

On Shore Technology Inc. EDZ250/3
MPNEDZ250/3
Active
TERM BLK 3P SIDE ENT 5.08MM PCB
$1.7300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEDZ250
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | EDZ250 |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 15 A |
| Wire gauge | 14-28 AWG |
| Wire termination | Screw - Rising Cage Clamp |
| Operating temperature | -30°C ~ 105°C |
| Color | Green |
| Housing material | Polyamide (PA), Nylon |
| Clamp material - plating | Copper |
| Contact material - plating | Brass |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Screw thread | M3 |
| Torque - screw | 0.5 Nm (4.4 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 3 |
