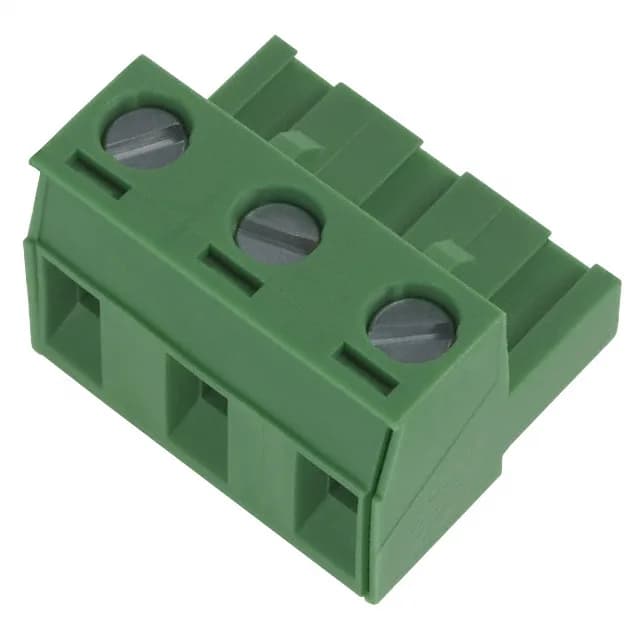

On Shore Technology Inc. EDZ960/3
MPNEDZ960/3
Active
TERM BLOCK PLUG 3POS STR 7.62MM
$3.2200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEDZ960
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | EDZ960 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Wire strip length | 6mm |
| Wire gauge or range - AWG | 12-28 AWG |
| Wire gauge or range - mm2 | 2.5mm² |
| Operating temperature | -30°C ~ 105°C |
| Color | Green |
| Contact material | Copper Tin Alloy |
| Housing material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.300\" (7.62mm) |
| Package | Bulk |
| Torque - screw | 0.5 Nm (4.4 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw |
| Positions | 3 |
| Positions per level | 3 |
