On Shore Technology Inc. OSTHD040080
MPNOSTHD040080
Active

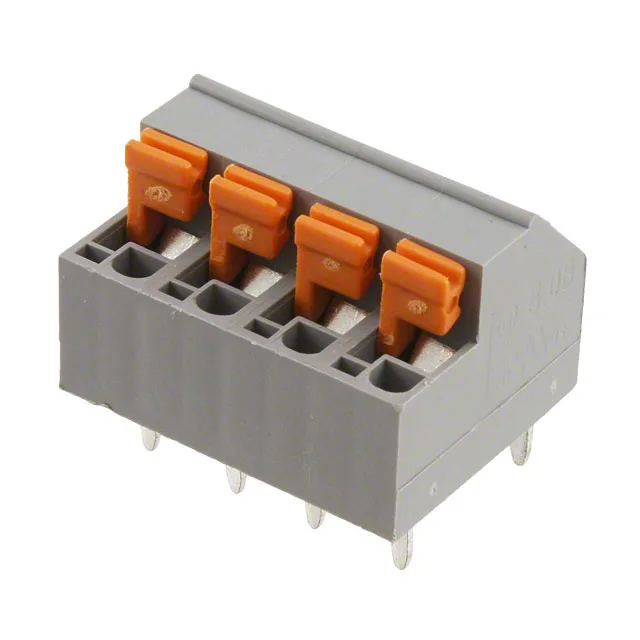

TERM BLOCK 4POS 5.08MM PCB
$2.51Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesOSTHD
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | OSTHD |
| Mounting | Through Hole |
| Voltage | 250 V |
| Current | 12 A |
| Wire gauge | 16-22 AWG |
| Wire termination | Screwless - Leg Spring, Push-In Spring |
| Operating temperature | -30°C ~ 105°C |
| Color | Gray |
| Housing material | Thermoplastic |
| Clamp material - plating | Steel, Stainless |
| Contact material - plating | Brass - Tin Plated |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Lever Actuated |
| Number of levels | 1 |
| Mating orientation | Angled |
| Positions per level | 4 |
