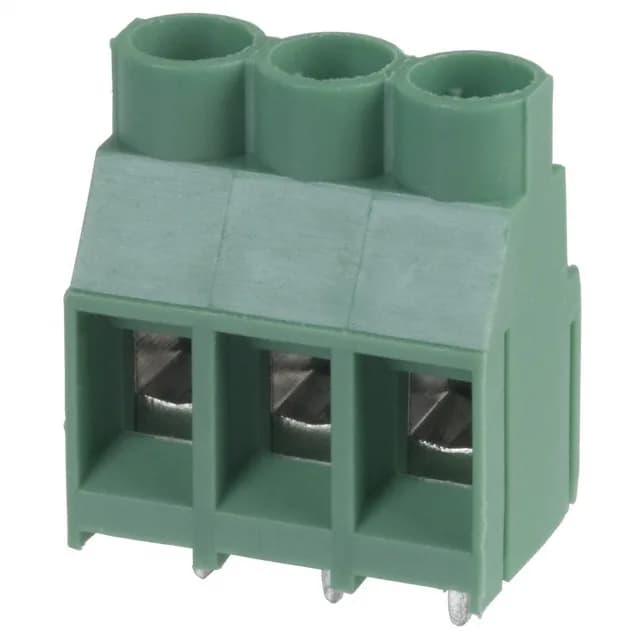

On Shore Technology Inc. OSTT7030150
MPNOSTT7030150
Active
TERM BLK 3P SIDE ENT 6.35MM PCB
$2.2600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesOSTT7
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | OSTT7 |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 25 A |
| Wire gauge | 10-24 AWG |
| Wire termination | Screw - Rising Cage Clamp |
| Operating temperature | -30°C ~ 105°C |
| Color | Green |
| Housing material | Thermoplastic |
| Clamp material - plating | Brass |
| Screw material - plating | Steel - Zinc Plated |
| Contact material - plating | Brass |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.250\" (6.35mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw thread | M3 |
| Torque - screw | 1.0 Nm (8.9 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 3 |
