On Shore Technology Inc. OSTTA064163
MPNOSTTA064163
Active

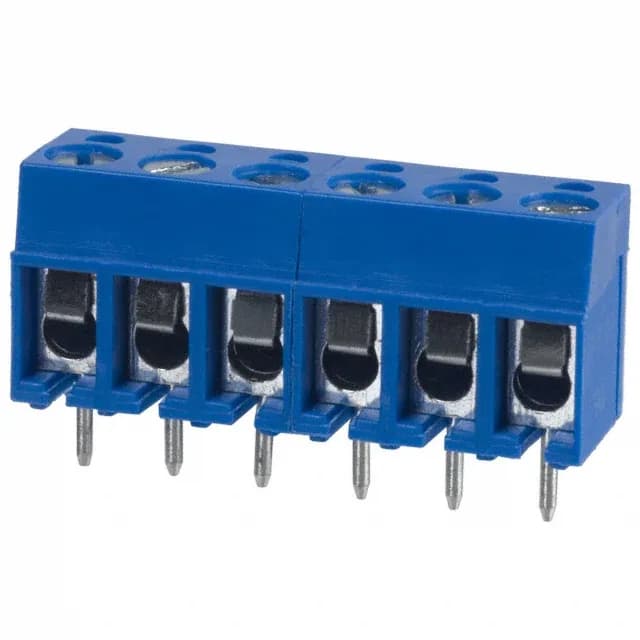

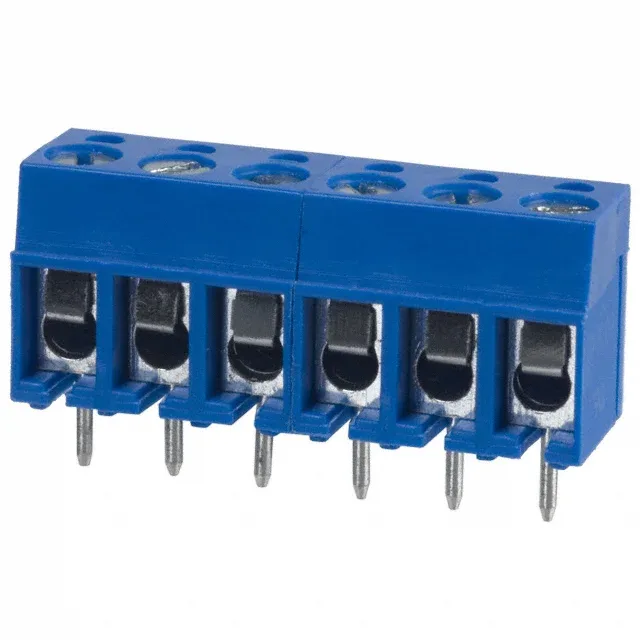

TERM BLK 6P SIDE ENT 5.08MM PCB
$1.6700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesOSTTA
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | OSTTA |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 15 A |
| Wire gauge | 14-22 AWG |
| Wire termination | Screw - Leaf Spring, Wire Guard |
| Operating temperature | -30°C ~ 105°C |
| Color | Blue |
| Housing material | Thermoplastic |
| Clamp material - plating | Steel, Stainless |
| Screw material - plating | Steel - Zinc Plated |
| Pitch | 0.200\" (5.08mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw thread | M3 |
| Torque - screw | 0.4 Nm (3.5 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 6 |
