On Shore Technology Inc. OSTTE021104
MPNOSTTE021104
Active

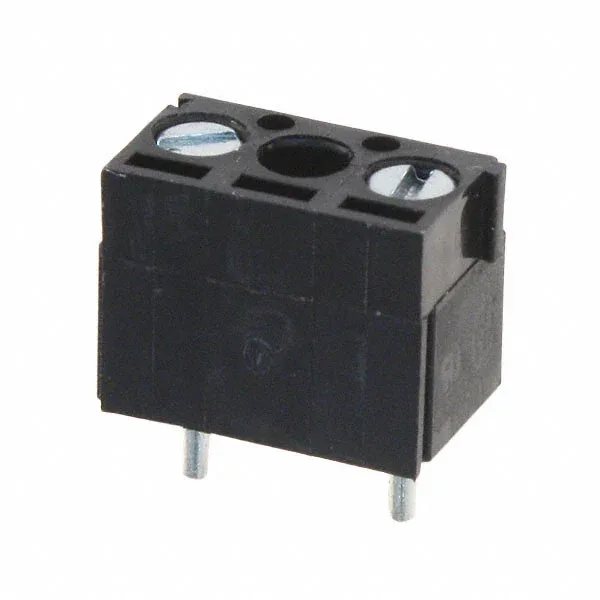

TERM BLK 2POS SIDE ENTRY 7MM PCB
$0.83Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesOSTTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | OSTTE |
| Mounting | Through Hole |
| Voltage | 125 V |
| Current | 10 A |
| Wire gauge | 16-26 AWG |
| Wire termination | Screw - Leaf Spring, Wire Guard |
| Operating temperature | -40°C ~ 115°C |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Steel, Stainless |
| Screw material - plating | Steel - Zinc Plated |
| Contact material - plating | Brass - Tin Plated |
| Pitch | 0.276\" (7.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw thread | M2 |
| Torque - screw | 0.2 Nm (1.7 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 2 |
