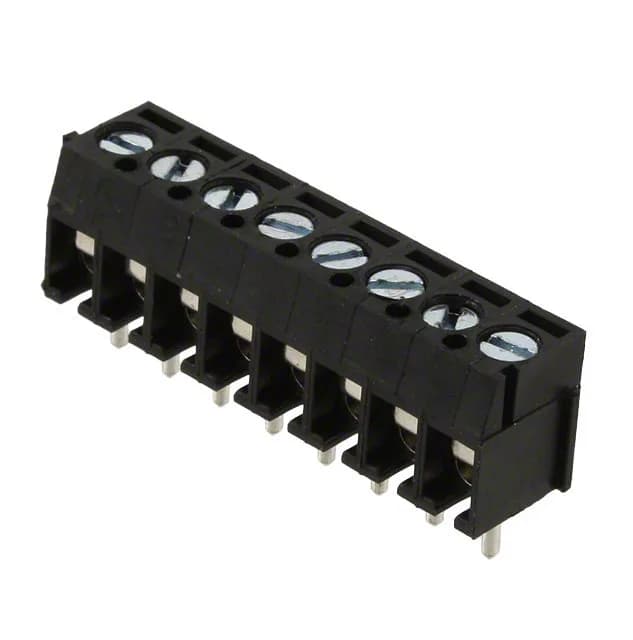

On Shore Technology Inc. OSTTE080104
MPNOSTTE080104
Active
TERM BLK 8POS SIDE ENT 3.5MM PCB
$1.8800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesOSTTE
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | OSTTE |
| Mounting | Through Hole |
| Voltage | 125 V |
| Current | 10 A |
| Wire gauge | 16-26 AWG |
| Wire termination | Screw - Leaf Spring, Wire Guard |
| Operating temperature | -40°C ~ 115°C |
| Color | Black |
| Housing material | Thermoplastic |
| Clamp material - plating | Steel, Stainless |
| Screw material - plating | Steel - Zinc Plated |
| Contact material - plating | Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw thread | M2 |
| Torque - screw | 0.2 Nm (1.7 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 8 |
