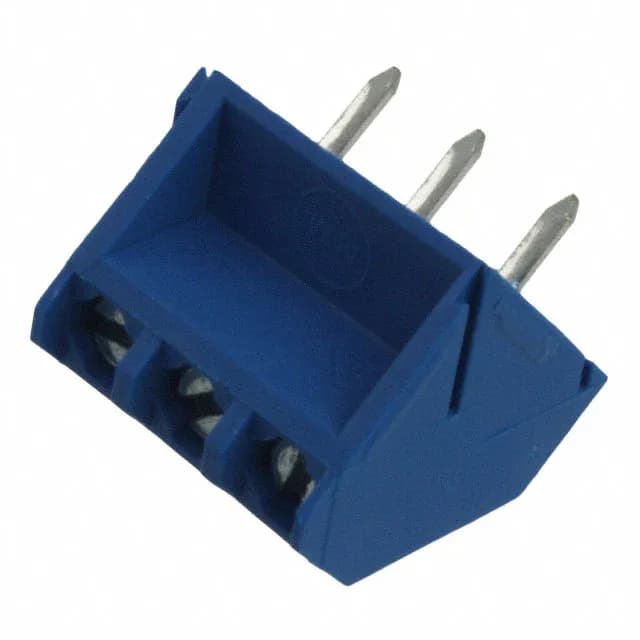

On Shore Technology Inc. OSTTG030160B
MPNOSTTG030160B
Active
TERM BLOCK 3POS 5MM PCB
$1.2600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesOSTTG
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | OSTTG |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 15 A |
| Wire gauge | 12-24 AWG |
| Wire termination | Screw - Rising Cage Clamp |
| Operating temperature | -30°C ~ 105°C |
| Color | Blue |
| Housing material | Thermoplastic |
| Clamp material - plating | Brass |
| Screw material - plating | Steel - Zinc Plated |
| Contact material - plating | Brass |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw thread | M2.5 |
| Torque - screw | 0.4 Nm (3.5 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Angled |
| Positions per level | 3 |
