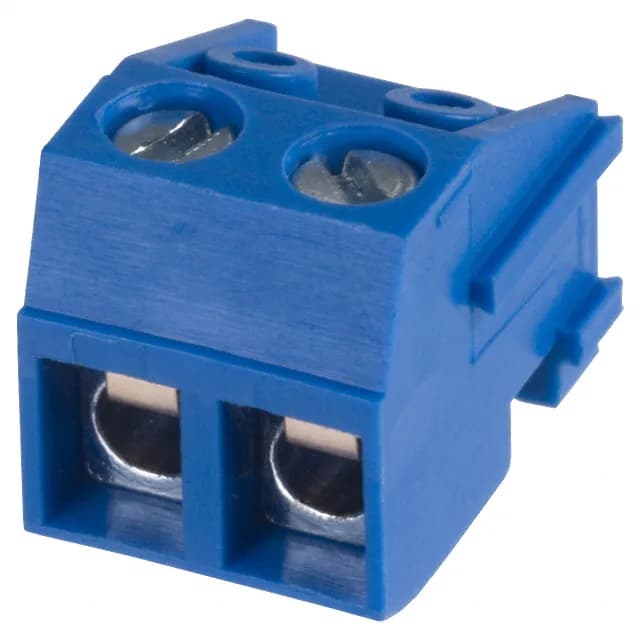

On Shore Technology Inc. OSTTH020160
MPNOSTTH020160
Active
TERM BLOCK PLUG 2POS 90DEG 5MM
$1.0800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesOSTTH
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug for Unshrouded Header |
| Series | OSTTH |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Wire strip length | 5-6mm |
| Wire gauge or range - AWG | 14-22 AWG |
| Wire gauge or range - mm2 | 0.34-1.5mm² |
| Operating temperature | -40°C ~ 115°C |
| Color | Blue |
| Contact material | Brass |
| Housing material | Brass |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Torque - screw | 0.4 Nm (3.5 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Nickel |
