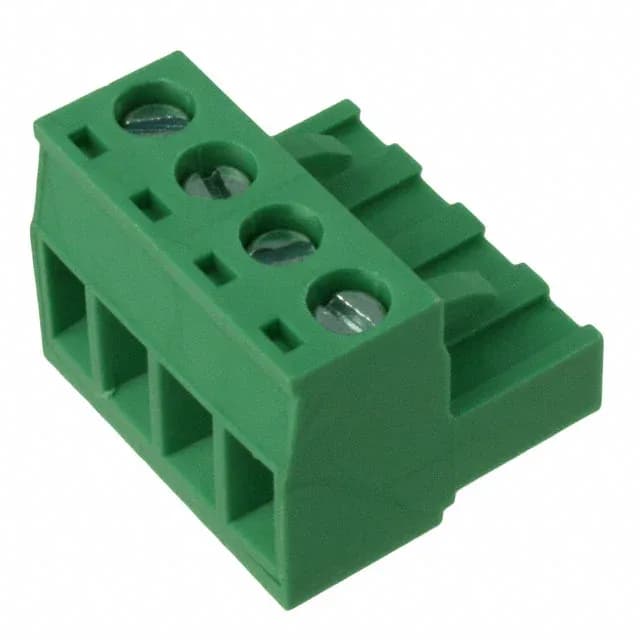

On Shore Technology Inc. OSTTJ047150
MPNOSTTJ047150
Active
TERM BLOCK PLUG 4POS STR 5MM
$2.3500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesOSTTJ
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | OSTTJ |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Wire strip length | 7-8mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.34-2.5mm² |
| Operating temperature | -40°C ~ 115°C |
| Color | Green |
| Contact material | Brass |
| Housing material | Brass |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.197\" (5.00mm) |
| Package | Tray |
| Torque - screw | 0.56 Nm (5.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw |
| Positions | 4 |
| Positions per level | 4 |
