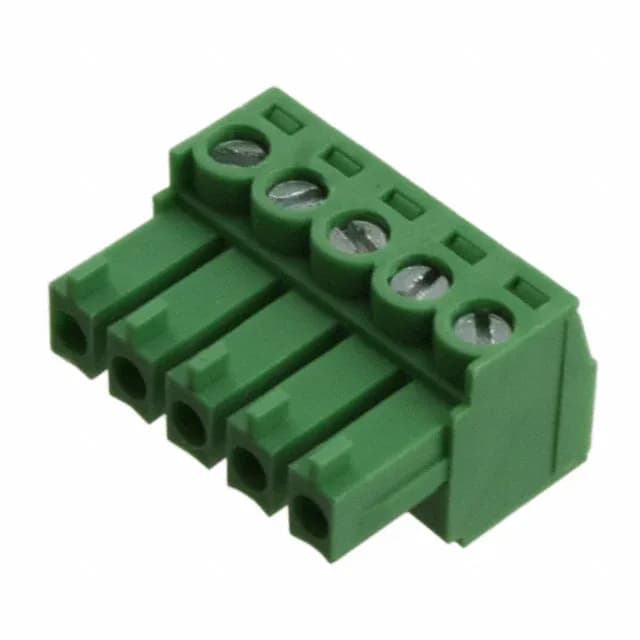

On Shore Technology Inc. OSTTJ0531530
MPNOSTTJ0531530
Active
TERM BLOCK PLUG 5POS STR 3.81MM
$2.7300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesOSTTJ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | OSTTJ |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Wire strip length | 6-7mm |
| Wire gauge or range - AWG | 16-26 AWG |
| Wire gauge or range - mm2 | 1.5mm² |
| Operating temperature | -40°C ~ 115°C |
| Color | Green |
| Contact material | Brass |
| Housing material | Brass |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Torque - screw | 0.28 Nm (2.5 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw |
| Positions | 5 |
| Positions per level | 5 |
