On Shore Technology Inc. OSTTJ115153
MPNOSTTJ115153
Active

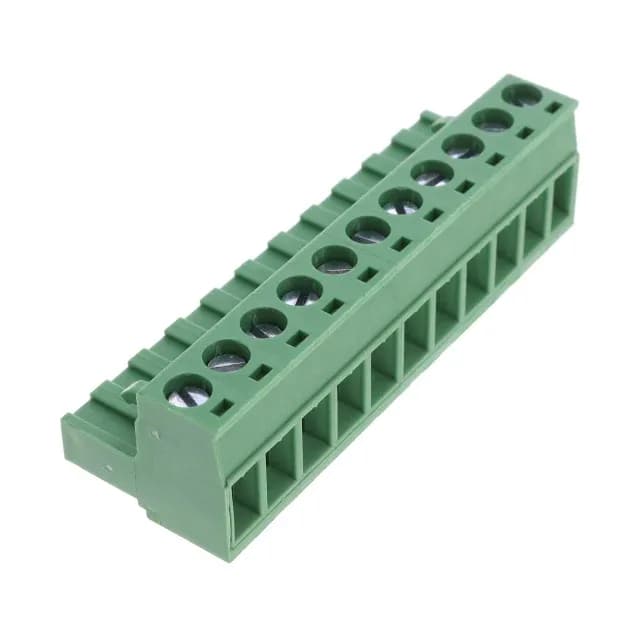

TERM BLOCK PLUG 11POS STR 5.08MM
$5.3100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesOSTTJ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | OSTTJ |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 300 V |
| Current - UL | 15 A |
| Wire strip length | 7-8mm |
| Wire gauge or range - AWG | 12-24 AWG |
| Wire gauge or range - mm2 | 0.34-2.5mm² |
| Operating temperature | -30°C ~ 105°C |
| Color | Green |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Housing material | Brass |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Torque - screw | 0.56 Nm (5.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw |
| Positions | 11 |
| Positions per level | 11 |
| Contact mating finish | Tin |
