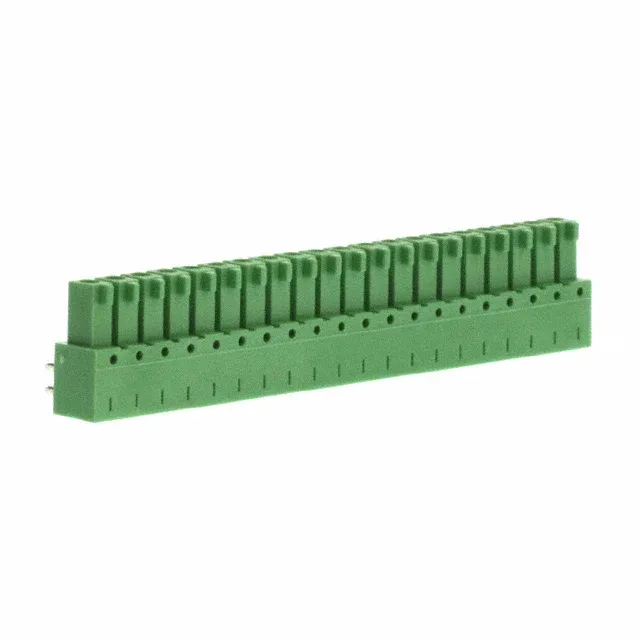

TERM BLOCK HDR 20POS 3.81MM
$3.72Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Female Sockets |
| Series | OSTV7 |
| Mounting type | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 4 A |
| Operating temperature | -30°C ~ 105°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Thermoplastic |
| Insulation height | 0.260\" (6.60mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.134\" (3.40mm) |
| Positions | 20 |
| Positions per level | 20 |
Sourcing this connector
On Shore Technology Inc. OSTV7203151 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against On Shore Technology Inc. and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
