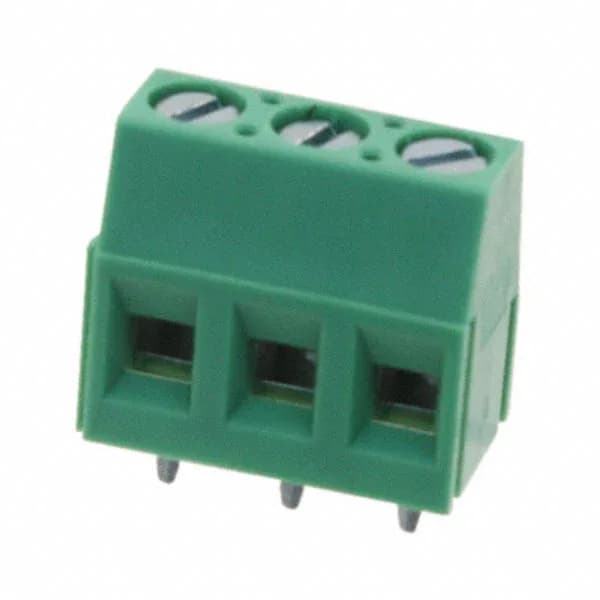

On Shore Technology Inc. OSTVI032152
MPNOSTVI032152
Active
TERM BLK 3P SIDE ENT 5.08MM PCB
$1.6600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesOSTVI
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | OSTVI |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 16 A |
| Wire gauge | 12-28 AWG |
| Wire termination | Screw - Rising Cage Clamp |
| Operating temperature | -30°C ~ 105°C |
| Color | Green |
| Housing material | Thermoplastic |
| Clamp material - plating | Brass |
| Screw material - plating | Steel - Zinc Plated |
| Contact material - plating | Brass |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw thread | M3 |
| Torque - screw | 0.4 Nm (3.5 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 3 |
