On Shore Technology Inc. OSTVN08A150
MPNOSTVN08A150
Active

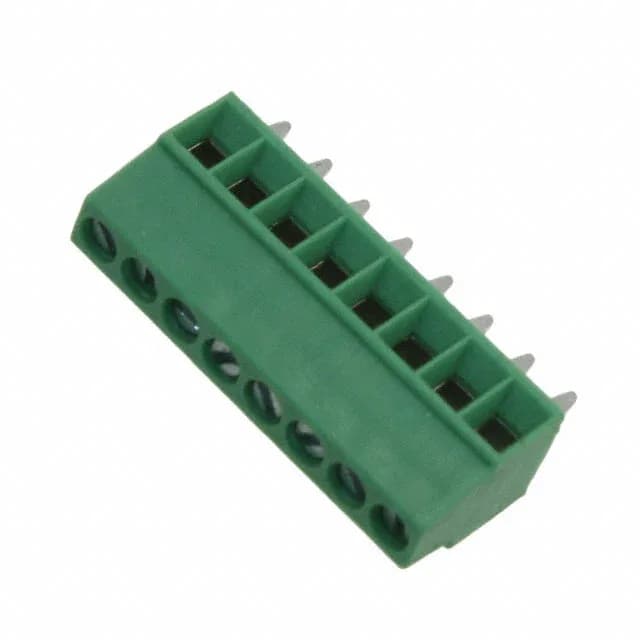

TERM BLK 8P SIDE ENT 2.54MM PCB
$2.8000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesOSTVN
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | OSTVN |
| Mounting | Through Hole |
| Voltage | 125 V |
| Current | 6 A |
| Wire gauge | 18-30 AWG |
| Wire termination | Screw - Rising Cage Clamp |
| Operating temperature | -30°C ~ 105°C |
| Color | Green |
| Housing material | Thermoplastic |
| Clamp material - plating | Brass |
| Screw material - plating | Steel - Zinc Plated |
| Contact material - plating | Brass |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Screw thread | M1.6 |
| Torque - screw | 0.15 Nm (1.3 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 8 |
