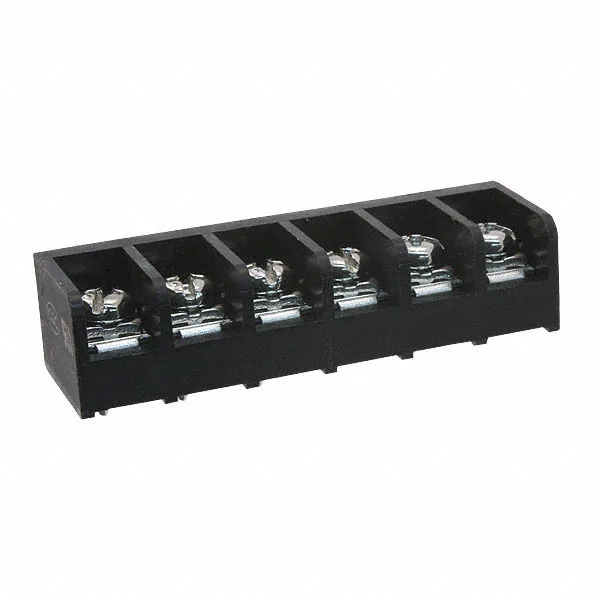

CONN BARRIER STRIP 6CIRC 0.374"
$2.82Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | OSTYK44 |
| Barrier type | 3 Wall (Tri) |
| Mounting type | Through Hole |
| Terminal block type | Barrier Block |
| Voltage rating | 300V |
| Current rating | 30A |
| Wire gauge | 12-22 AWG |
| Terminal screw finish | Nickel |
| Number of wire entries | 6 |
| Terminal screw material | Steel |
| Operating temperature | -40°C ~ 115°C |
| Color | Black |
| Material - insulation | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.374\" (9.50mm) |
| Package | Bulk |
| Rows | 1 |
| Top termination | Screws with Captive Plate |
| Bottom termination | PC Pin |
| Number of circuits | 6 |
Sourcing this connector
On Shore Technology Inc. OSTYK44106030 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against On Shore Technology Inc. and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
