On Shore Technology Inc. OSTYK51105030
MPNOSTYK51105030
Active

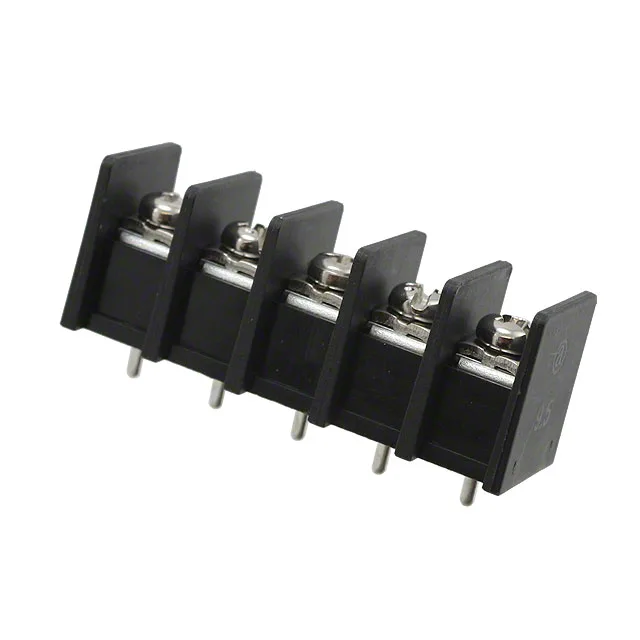

CONN BARRIER STRIP 5CIRC 0.374"
$2.53Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesOSTYK51
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | OSTYK51 |
| Barrier type | 2 Wall (Dual) |
| Mounting | Through Hole |
| Terminal block type | Barrier Block |
| Voltage rating | 300V |
| Current rating | 30A |
| Wire gauge | 10-22 AWG |
| Terminal screw finish | Nickel |
| Number of wire entries | 5 |
| Terminal screw material | Steel |
| Operating temperature | -40°C ~ 115°C |
| Color | Black |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.374\" (9.50mm) |
| Package | Bulk |
| Rows | 1 |
| Top termination | Screws with Captive Plate |
| Bottom termination | PC Pin |
| Number of circuits | 5 |
