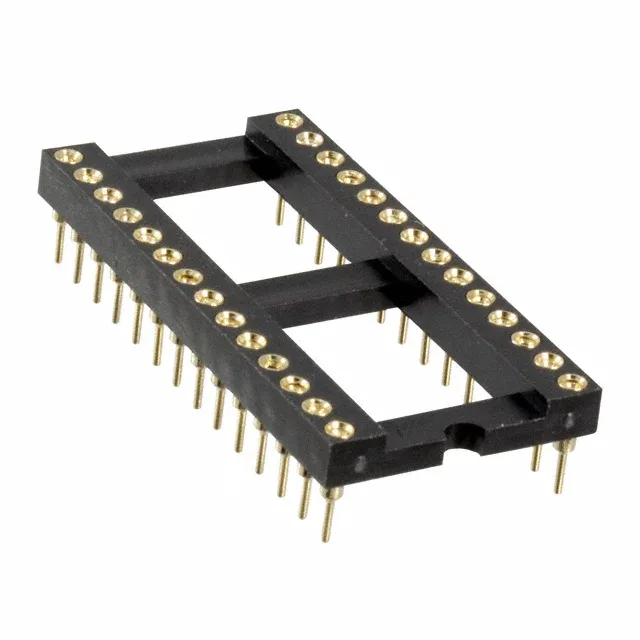

On Shore Technology Inc. SA286040
MPNSA286040
Active
CONN IC DIP SOCKET 28POS GOLD
$1.39Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSA
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | SA |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -40°C ~ 105°C |
| Housing material | Thermoplastic, Polyester, Glass Filled |
| Contact material - post | Brass |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
All specifications
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 4mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | Flash |
| Number of positions or pins | 28 (2 x 14) |
