Oupiin 7917-15MTBG00A
MPN7917-15MTBG00A
Active

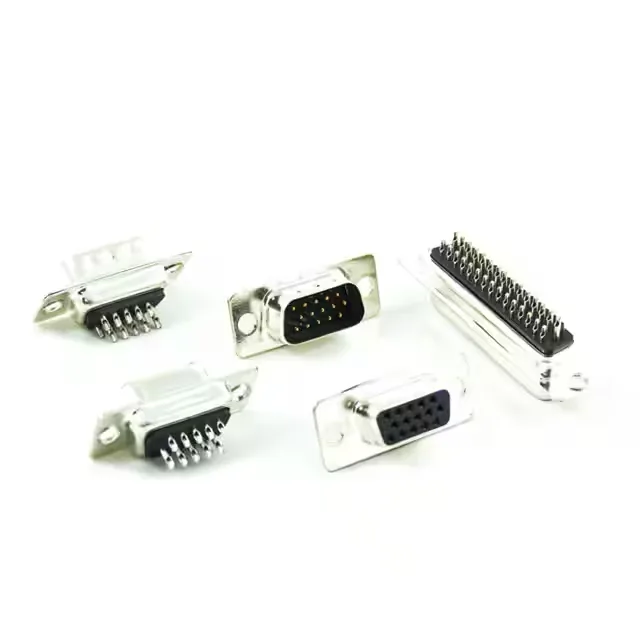

CONN D-SUB HD PLUG 15P SLDR CUP
$1.32Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series7917
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 7917 |
| Type | Signal |
| Mounting | Free Hanging (In-Line) |
| Connector type | D-Sub, High Density |
| Current rating | 1A |
| Shell size, connector layout | 1 (DE, E) High Density |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Polybutylene Terephthalate (PBT) |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Grounding Indents |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 3 |
| Positions | 15 |
| Contact finish thickness | Flash |
