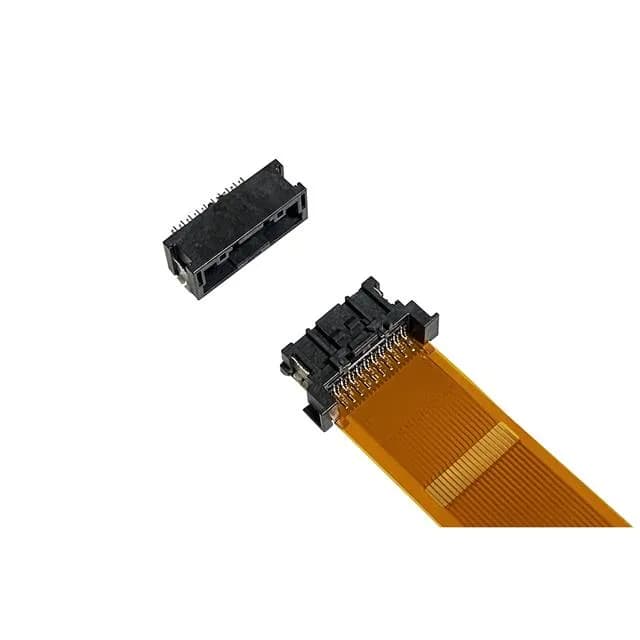

Panasonic Electric Works AYC5F2810
MPNAYC5F2810
Active
28-PIN RECEPTACLE
$5.1500Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCF2
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CF2 |
| Mounting | Surface Mount, Right Angle |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Top and Bottom |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -40°C ~ 125°C |
| Housing color | Black |
| Actuator color | Black |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP) |
| Actuator material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Height above board | 0.205\" (5.20mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.087\" (2.20mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Mating cycles | 500 |
| Contact finish | Tin |
| Positions | 28 |
