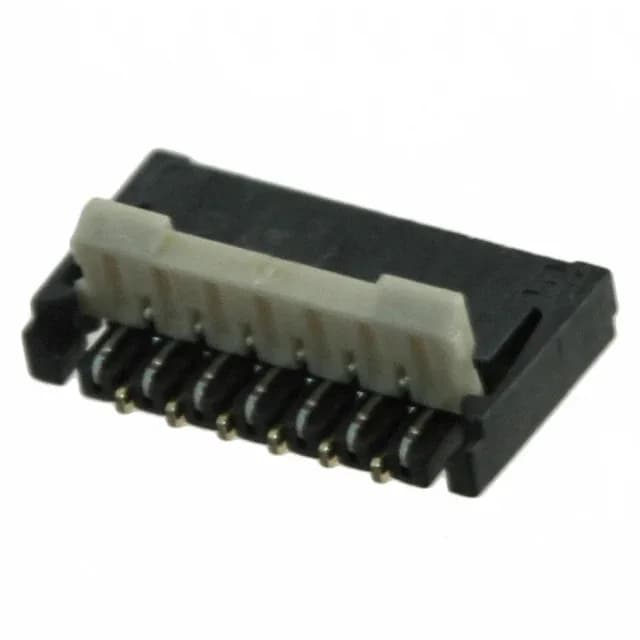

Panasonic Electric Works AYF331335
MPNAYF331335
Active
CONN FPC 13POS 0.3MM R/A
$0.8200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesY3B
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Y3B |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tapered |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Top and Bottom |
| Voltage rating | 50V |
| Current rating | 0.2A per Contact |
| Operating temperature | -55°C ~ 85°C |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP) |
| Actuator material | Liquid Crystal Polymer (LCP) |
| Height above board | 0.035\" (0.88mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.012\" (0.30mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Flip Lock, Backlock |
| FFC, FCB thickness | 0.20mm |
| Positions | 13 |
| Contact finish thickness | Flash |
