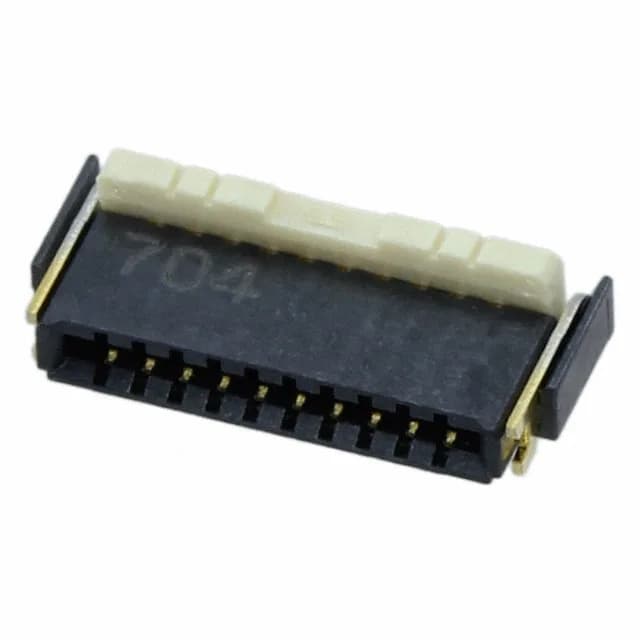

Panasonic Electric Works AYF531035
MPNAYF531035
Active
CONN FFC FPC 10POS 0.5MM R/A
$0.9400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesY5B
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Y5B |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Top and Bottom |
| Voltage rating | 50V |
| Current rating | 0.5A per Contact |
| Operating temperature | -55°C ~ 85°C |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP) |
| Actuator material | Liquid Crystal Polymer (LCP) |
| Height above board | 0.039\" (1.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Flip Lock, Backlock |
| FFC, FCB thickness | 0.30mm |
| Positions | 10 |
| Contact finish thickness | Flash |
