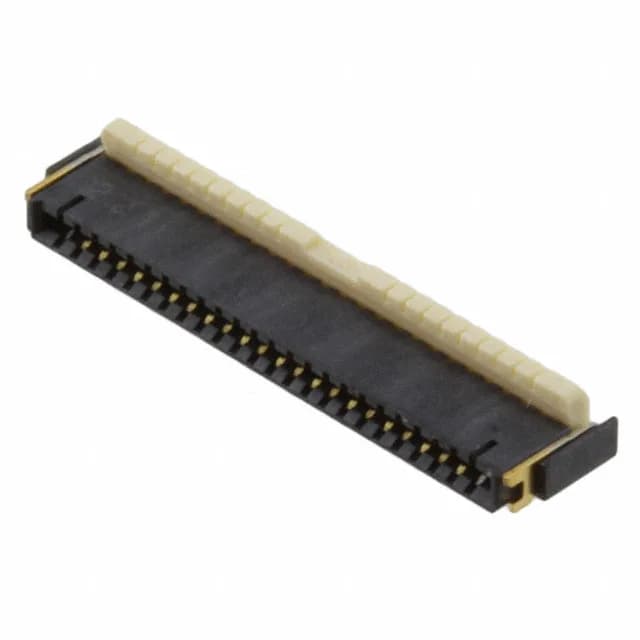

Panasonic Electric Works AYF532665TA
MPNAYF532665TA
Active
CONN FPC 26POS 0.5MM R/A
$3.5600Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesY5BW
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Y5BW |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Notched |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Top and Bottom |
| Voltage rating | 50V |
| Current rating | 0.5A per Contact |
| Operating temperature | -55°C ~ 85°C |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP) |
| Actuator material | Liquid Crystal Polymer (LCP) |
| Height above board | 0.039\" (1.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Bulk |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Flip Lock, Backlock |
| FFC, FCB thickness | 0.30mm |
| Positions | 26 |
