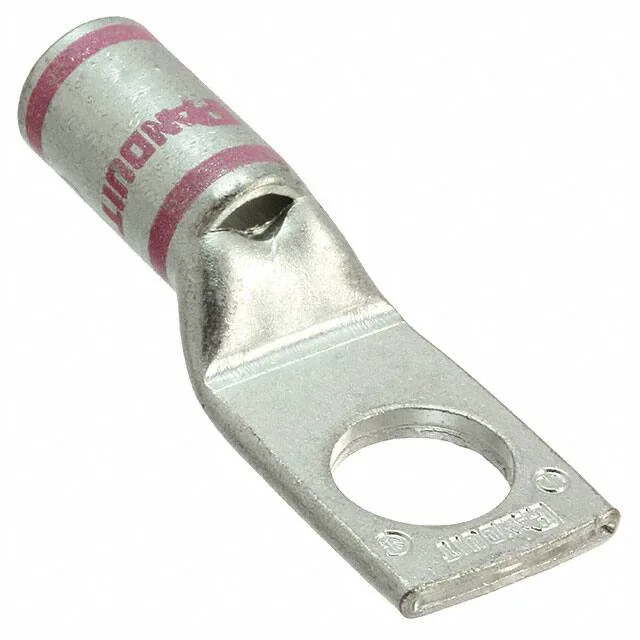

Panduit Corp LCA1/0-12-X
MPNLCA1/0-12-X
Active
CONN TERM RECT LUG 1/0 AWG #1/2
$6.98Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPan-Lug™
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Pan-Lug™ |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Lug, Grounding |
| Wire gauge | 1/0 AWG |
| Terminal style | Single Stud Hole |
| Color | Pink |
| Contact material | Copper |
| Width - outer edges | 0.800\" (20.32mm) |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Crimp, Barrel |
| Stud (Tab size) | 1/2 Stud |
| Tab thickness | 0.120\" (3.05mm) |
| Contact finish | Electro-Tin |
| Length - overall | 2.310\" (58.67mm) |
| Diameter - ring ID | 0.530\" (13.46mm) |
| Diameter - barrel ID | 0.390\" (9.91mm) |
| Diameter - barrel OD | 0.520\" (13.21mm) |
