Panduit Corp LCA2/0-12-X
MPNLCA2/0-12-X
Active

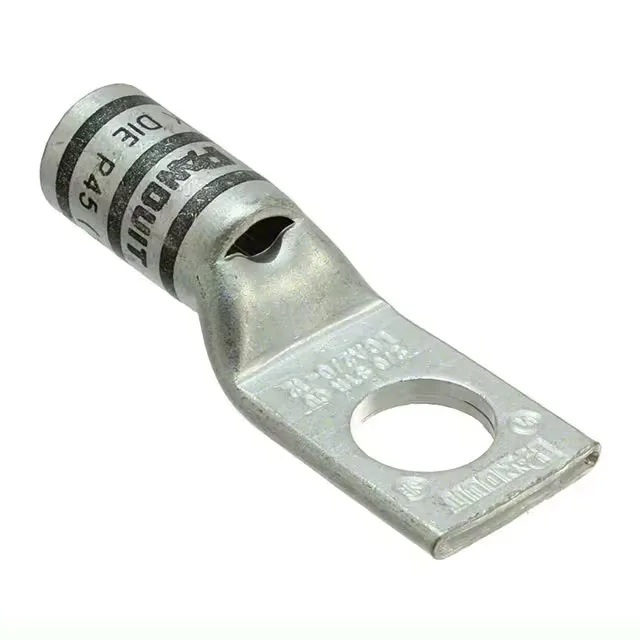

CONN TERM RECT LUG 2/0 AWG #1/2
$7.88Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPan-Lug®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Pan-Lug® |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Lug, Grounding |
| Wire gauge | 2/0 AWG |
| Terminal style | Single Stud Hole |
| Color | Black |
| Contact material | Copper |
| Width - outer edges | 0.850\" (21.59mm) |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Crimp, Barrel |
| Stud (Tab size) | 1/2 Stud |
| Tab thickness | 0.130\" (3.30mm) |
| Contact finish | Electro-Tin |
| Length - overall | 2.390\" (60.71mm) |
| Diameter - ring ID | 0.530\" (13.46mm) |
| Diameter - barrel ID | 0.450\" (11.43mm) |
| Diameter - barrel OD | 0.580\" (14.73mm) |
