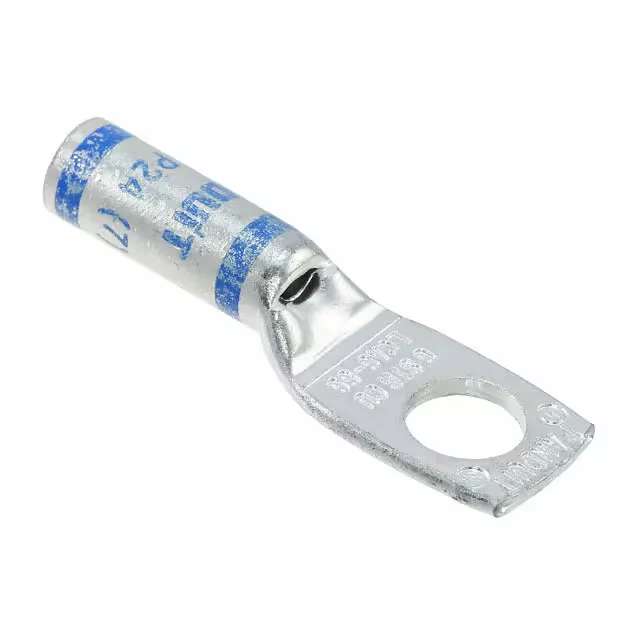

CONN TERM RECT TONG 6 AWG #5/16
$2.43Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Pan-Lug® |
| Mounting type | Free Hanging (In-Line) |
| Terminal type | Rectangular Tongue |
| Wire gauge | 6 AWG |
| Terminal style | Single Stud Hole |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.560\" (14.22mm) |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Crimp, Barrel |
| Stud (Tab size) | 5/16 Stud |
| Tab thickness | 0.070\" (1.78mm) |
| Contact finish | Electro-Tin |
| Length - overall | 1.730\" (43.94mm) |
| Diameter - ring ID | 0.340\" (8.64mm) |
| Diameter - barrel ID | 0.220\" (5.59mm) |
| Diameter - barrel OD | 0.310\" (7.87mm) |
Sourcing this connector
Panduit Corp LCA6-56-L is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Panduit Corp and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
