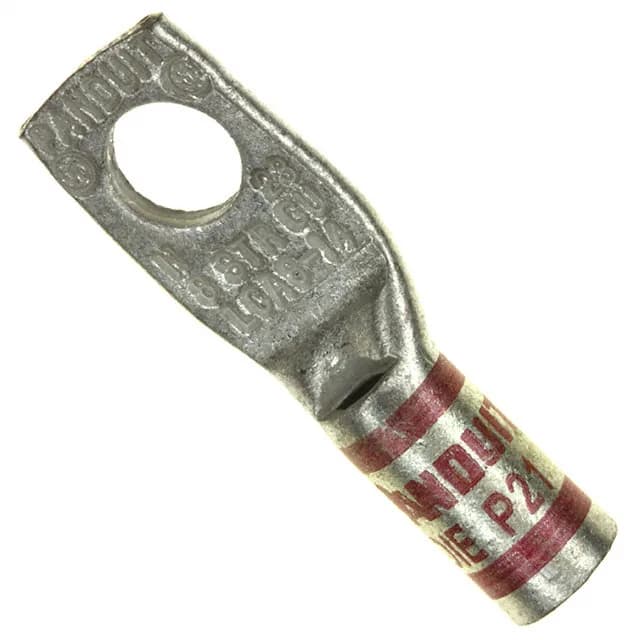

Panduit Corp LCA8-10-L
MPNLCA8-10-L
Active
$2.2000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Pan-Lug™ |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Lug, Grounding |
| Wire gauge | 8 AWG |
| Terminal style | Single Stud Hole |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.410\" (10.41mm) |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Crimp, Barrel |
| Manufacturer | Panduit Corp |
All specifications
| Parameter | Value |
|---|---|
| Stud (Tab size) | 10 Stud |
| Tab thickness | 0.080\" (2.03mm) |
| Contact finish | Electro-Tin |
| Length - overall | 1.250\" (31.75mm) |
| Diameter - ring ID | 0.200\" (5.08mm) |
| Diameter - barrel ID | 0.180\" (4.57mm) |
| Diameter - barrel OD | 0.270\" (6.86mm) |
