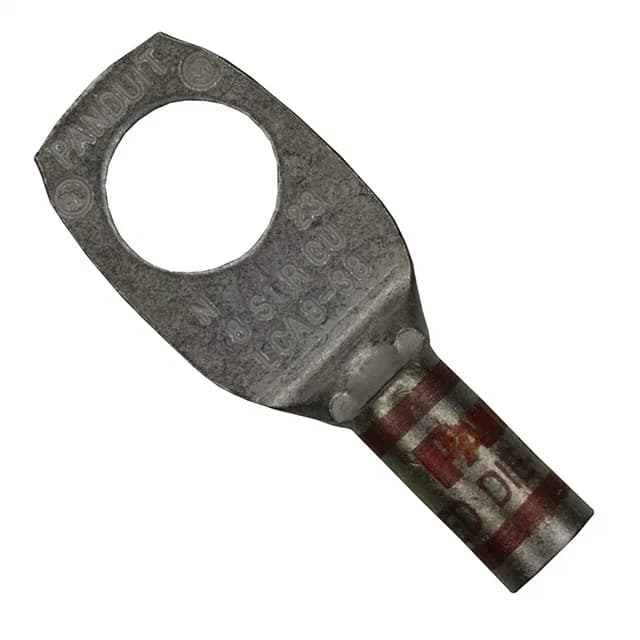

Panduit Corp LCA8-38-L
MPNLCA8-38-L
Active
CONN TERM RECT LUG 8 AWG #3/8
$2.2000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPan-Lug®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Pan-Lug™ |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Lug, Grounding |
| Wire gauge | 8 AWG |
| Terminal style | Single Stud Hole |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.600\" (15.24mm) |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Crimp, Barrel |
| Stud (Tab size) | 3/8 Stud |
| Tab thickness | 0.050\" (1.27mm) |
| Contact finish | Electro-Tin |
| Length - overall | 1.560\" (39.62mm) |
| Diameter - ring ID | 0.410\" (10.41mm) |
| Diameter - barrel ID | 0.180\" (4.57mm) |
| Diameter - barrel OD | 0.270\" (6.86mm) |
