Panduit Corp LCAX6-38-L
MPNLCAX6-38-L
Active

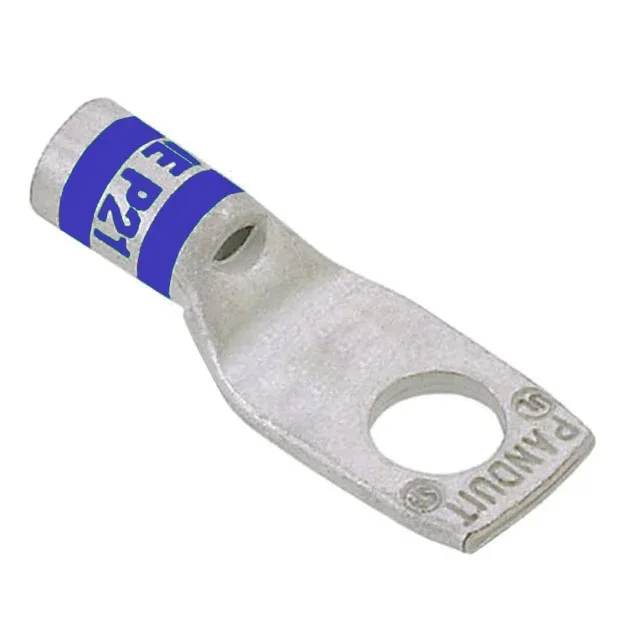

CONN TERM RECT TONG 6 AWG #3/8
$2.84Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPan-Lug®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Pan-Lug® |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Rectangular Tongue |
| Wire gauge | 6 AWG |
| Terminal style | Single Stud Hole |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.620\" (15.75mm) |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Crimp, Barrel |
| Stud (Tab size) | 3/8 Stud |
| Tab thickness | 0.060\" (1.52mm) |
| Contact finish | Electro-Tin |
| Length - overall | 1.500\" (38.10mm) |
| Diameter - ring ID | 0.410\" (10.41mm) |
| Diameter - barrel ID | 0.220\" (5.59mm) |
| Diameter - barrel OD | 0.310\" (7.87mm) |
