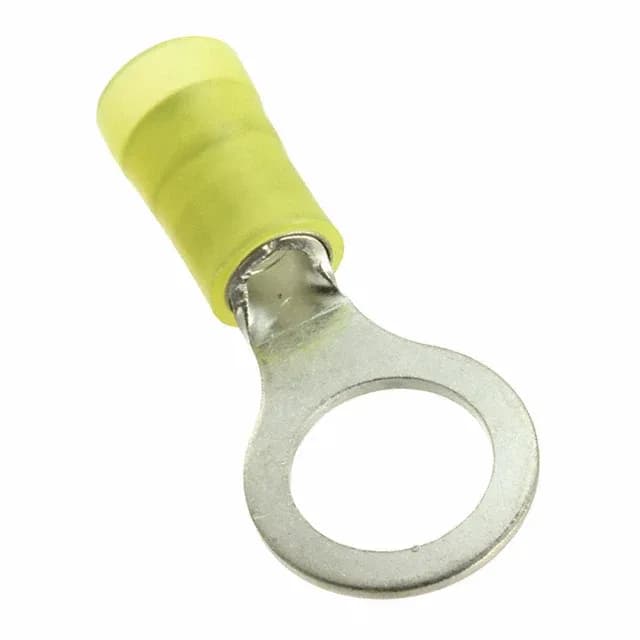

Panduit Corp PN10-38R-2K
MPNPN10-38R-2K
Active
CONN RING CIRC 10-12AWG #3/8
$0.7800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPan-Term®, Reel Smart™
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Pan-Term®, Reel Smart™ |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Width - outer edges | 0.580\" (14.73mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.040\" (1.02mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 3/8 Stud |
| Contact finish | Tin |
| Length - overall | 1.290\" (32.77mm) |
| Insulation diameter | 0.225\" (5.72mm) |
