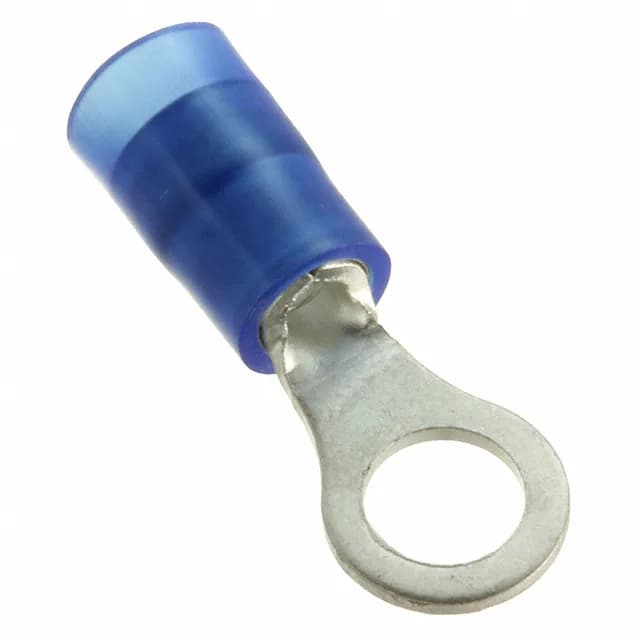

Panduit Corp PN14-10R-C
MPNPN14-10R-C
Active
CONN RING CIRC 14-16AWG #10
$1.2800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPan-Term®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Pan-Term® |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.310\" (7.87mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Thickness | 0.030\" (0.76mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 0.850\" (21.59mm) |
| Insulation diameter | 0.080\" ~ 0.162\" (2.03mm ~ 4.11mm) |
