Panduit Corp PV10-14F-D
MPNPV10-14F-D
Active

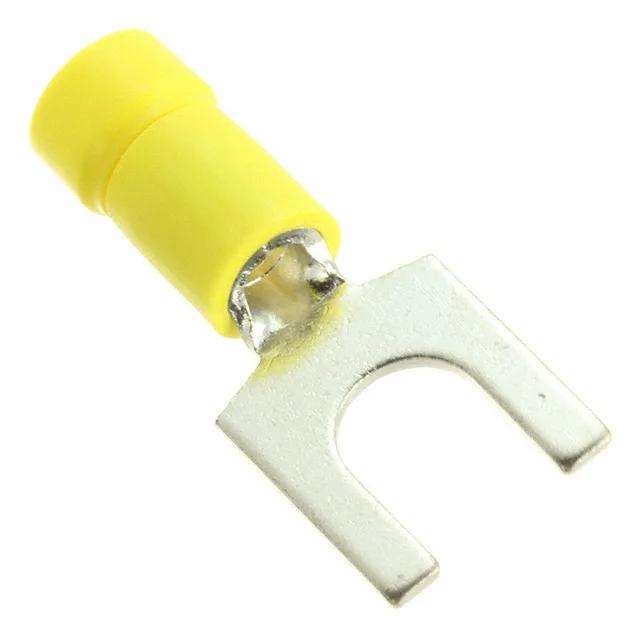

CONN SPADE TERM 10-12AWG #1/4
$0.61Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPan-Term®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Pan-Term® |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Copper |
| Width - outer edges | 0.490\" (12.45mm) |
| Material - insulation | Vinyl |
| Package | Bulk |
| Features | Brazed Seam |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 1/4 Stud |
| Contact finish | Tin |
| Length - overall | 1.140\" (28.96mm) |
| Insulation diameter | 0.225\" (5.72mm) |
| Tongue inside opening | 0.260\" (6.60mm) |
