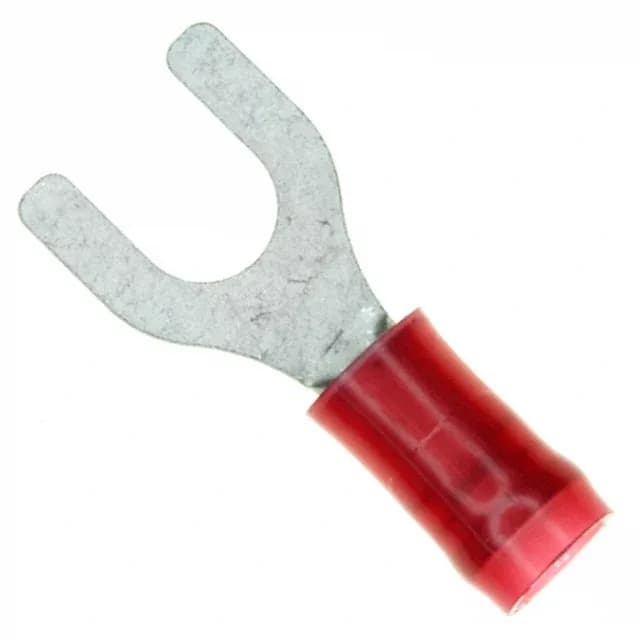

Panduit Corp PV18-10FB-3K
MPNPV18-10FB-3K
Active
CONN SPADE TERM 18-22AWG #10 RED
$0.4300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPan-Term®, ReelSmart™
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Pan-Term®, ReelSmart™ |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 18-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.350\" (8.89mm) |
| Material - insulation | Vinyl |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Butted Seam |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 0.860\" (21.84mm) |
| Insulation diameter | 0.150\" (3.81mm) |
| Tongue inside opening | 0.200\" (5.08mm) |
