Panduit Corp PV18-8LFB-3K
MPNPV18-8LFB-3K
Active

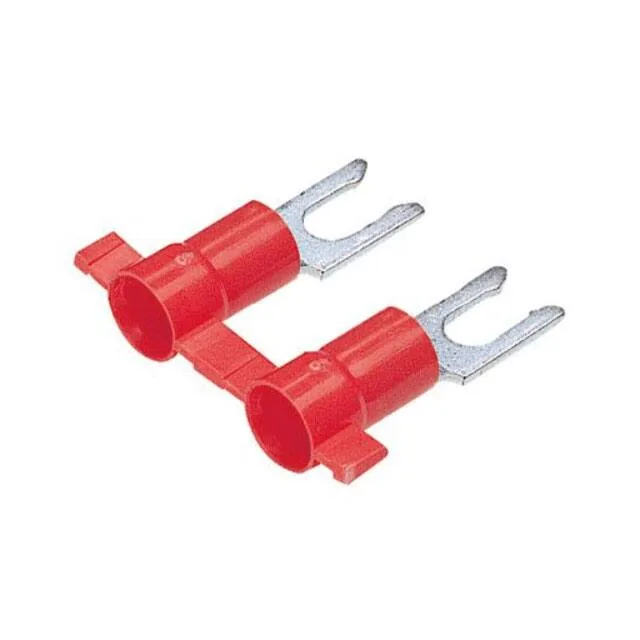

CONN SPADE TERM 18-22AWG #8 RED
$0.42Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPan-Term®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Pan-Term® |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 18-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.290\" (7.37mm) |
| Material - insulation | Vinyl |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Butted Seam |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 0.870\" (22.10mm) |
| Insulation diameter | 0.150\" (3.81mm) |
| Tongue inside opening | 0.160\" (4.06mm) |
