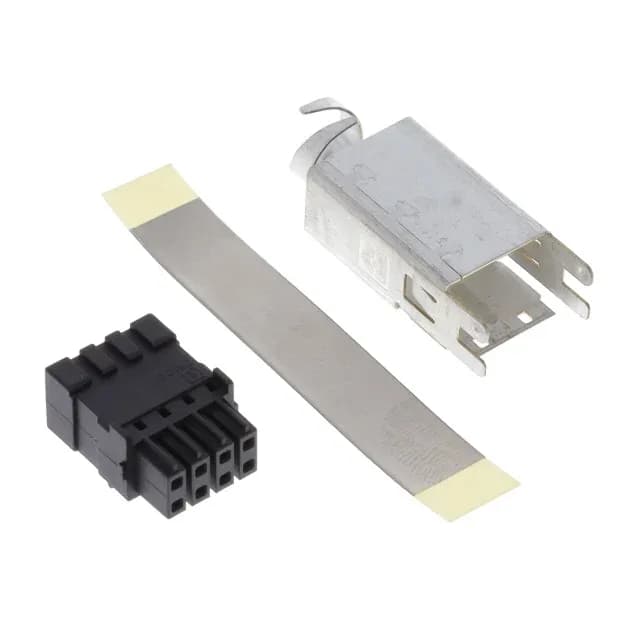

Phoenix Contact 1145726
MPN1145726
Active
PCB CONNECTOR, NOMINAL CROSS SEC
$3.84Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCOMBICON DMCC
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug Housing for Female Sockets |
| Series | COMBICON DMCC |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 150 V |
| Voltage - IEC | 160 V |
| Current - UL | 6 A |
| Current - IEC | 6A |
| IP rating | IP20 |
| Plug wire entry | 180° |
| Wire strip length | 4.1-4.5mm |
| Wire gauge or range - AWG | 18-26 AWG |
| Wire gauge or range - mm2 | 0.14-0.75mm² |
All specifications
| Parameter | Value |
|---|---|
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.309\" (7.85mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Box |
| Features | Solder Retention |
| Number of levels | 2 |
| Termination style | Crimp |
| Positions | 8 |
| Positions per level | 4 |
| Contact mating finish | Gold |
