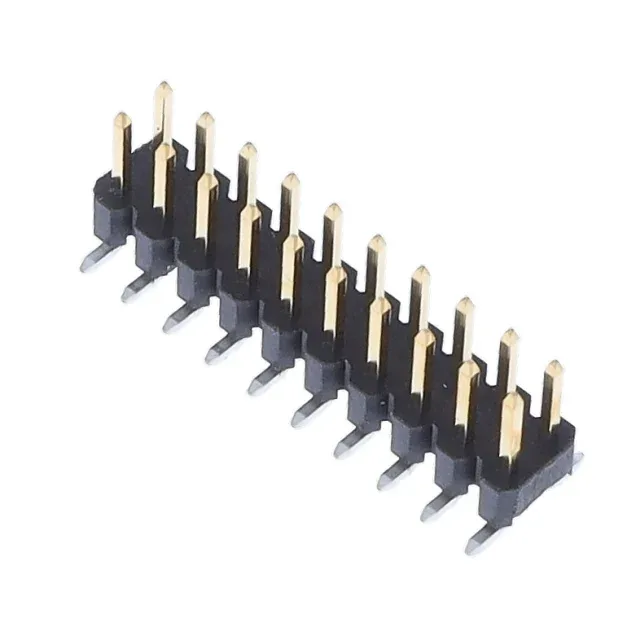

Phoenix Contact 1156915

Phoenix Contact 1156915

MPN1156915
Active

SMD MALE STRIP, NOMINAL CURRENT

$1.88Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFQ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1156915 key specifications
ParameterValue
SeriesFQ
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typePush-Pull
Operating temperature-40°C ~ 125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.098\" (2.50mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Board

All specifications

1156915 additional specifications
ParameterValue
PackageTube
FeaturesBoard Guide
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingGold
Contact length - mating0.197\" (5.00mm)
