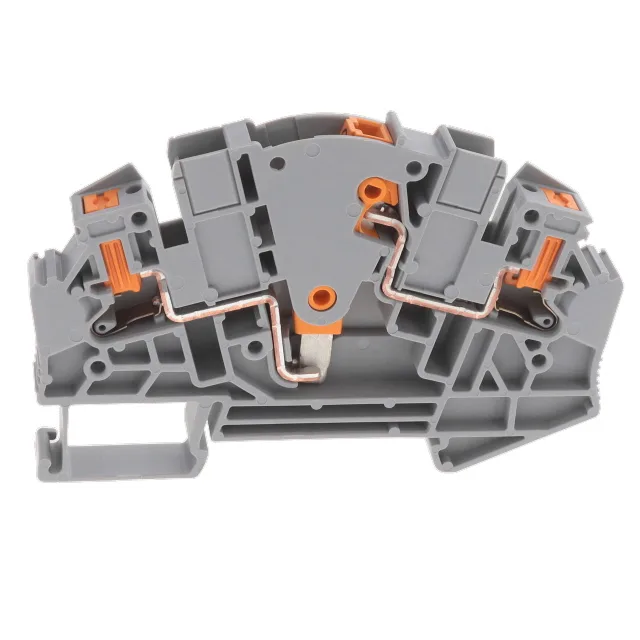

Phoenix Contact 1164788
MPN1164788
Active
TEST DISCONNECT TERMINAL BLOCK,
$11.31Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCLIPLINE PTVME
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Disconnect |
| Series | CLIPLINE PTVME |
| Disconnect type | Switch, Knife |
| Voltage - UL | 600V |
| Voltage - IEC | 1000V |
| Current - UL | 30 A |
| Current - IEC | 30 A |
| Terminal - width | 8.2mm |
| Wire gauge or range - AWG | 10-26 AWG |
| Wire gauge or range - mm2 | 0.5-6mm² |
| Color | Gray |
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Number of levels | 1 |
| Stripping length | 10mm ~ 12mm |
| Termination style | Push In, Spring |
| Positions | 2 |
