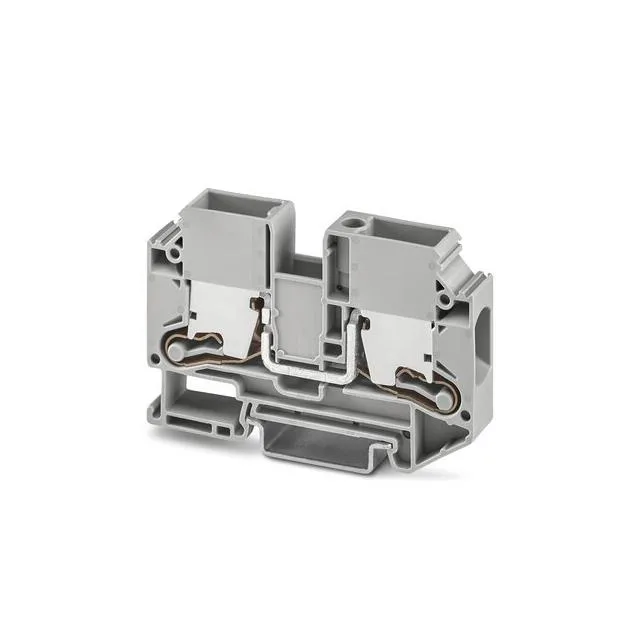

Phoenix Contact 1329672

Phoenix Contact 1329672

MPN 1329672
Active

FEED-THROUGH TERMINAL BLOCK, NOM

$7.81 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesXTV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1329672 specifications
ParameterValue
TypeFeed Through
SeriesXTV
Voltage - UL1000V
Voltage - IEC1000V
Current - UL75 A
Current - IEC76 A
Terminal - width12.2mm
Wire gauge or range - AWG4-10 AWG
Wire gauge or range - mm22.5-25mm²
ColorGray
Material - insulationPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
PackageBulk
FeaturesCover
Number of levels1
Stripping length18mm ~ 20mm
Termination stylePush In, Spring
Positions2
MPN
1329672
