Phoenix Contact 1404642
MPN1404642
Active

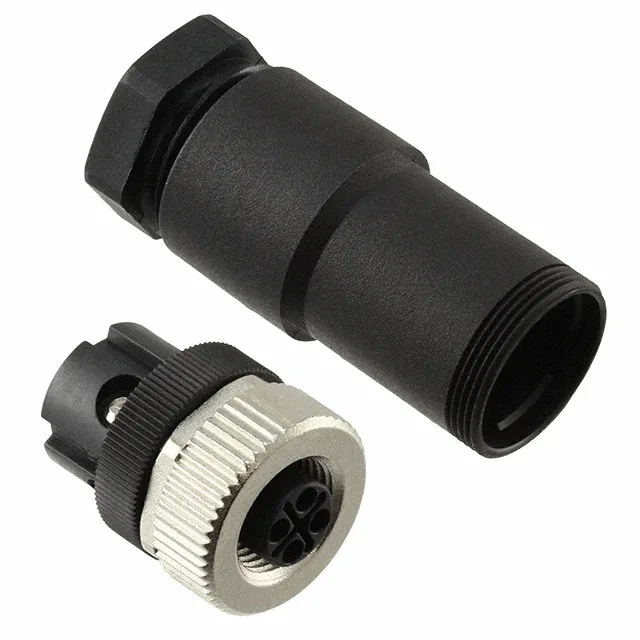

CONN RCPT FMALE 4POS GOLD SCREW
$40.74Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesSACC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SACC |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 630VAC |
| IP rating | IP67 - Dust Tight, Waterproof |
| Cable opening | 0.315\" ~ 0.394\" (8.00mm ~ 10.00mm) |
| Operating temperature | -40°C ~ 85°C |
| Color | Black, Silver |
| Shell material | Zinc Die Cast |
| Insert material | Polyamide (PA), Nylon |
| Contact material | Copper Zinc |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Metal |
| Backshell material, plating | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Backshell, Coupling Nut |
| Orientation | S |
| Termination | Screw |
| Shell finish | Nickel |
| Positions | 4 (Power) |
| Shell size - insert | M12-4 |
| Contact finish - mating | Gold |
