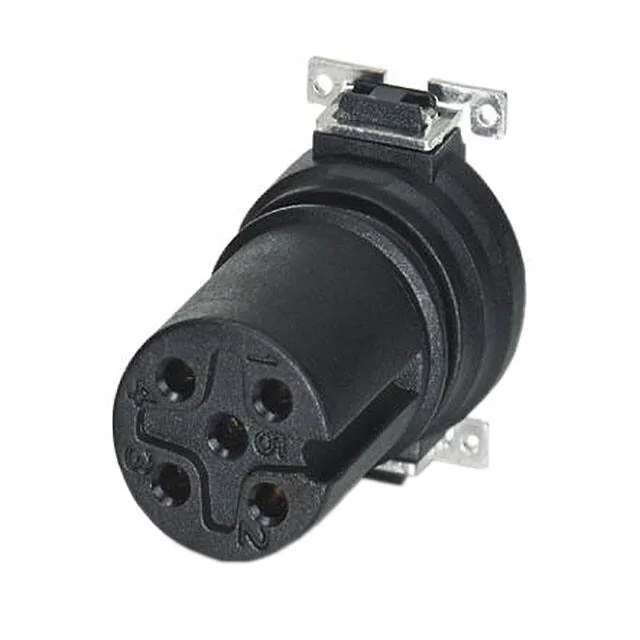

Phoenix Contact 1411976
MPN1411976
Active
CONN FMALE INSERT 5POS SOLDER
$4.19Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesSACC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SACC |
| Mounting | Surface Mount |
| Connector type | Insert, Female Sockets |
| Voltage rating | 60V |
| Current rating | 4A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Operating temperature | -55°C ~ 105°C |
| Insert material | Polyamide (PA), Nylon |
| Contact material | Copper Zinc |
| Material flammability rating | UL94 V-0 |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide, Insert Only, Requires Shell |
| Orientation | A |
| Termination | Solder |
| Positions | 5 |
| Shell size - insert | M12-5 |
| Contact finish - mating | Gold |
